One Antenna <- Legend -> Two Antennas
These are the results of our runs with some anennas and data removed. the middle columns are a quick and dirty legend, and here is a more elaborte explanation.... The rows represent different sources. The figures on the left show the data with one antenna missing, on the right we took out two antennas. The upper left panel shows the result of including all calibrated data (both in the left and right figures). On the left, the one below that (column 1, row 2) shows the result by flagging the first one minute of each of the (nine) tw0-minute scans, i.e., using half the observing time but still a good uv-coverage. Then on the left we took out one antenna and show the results, e.g., from left to right on row 3: LA flagged, NL flagged and PT flagged. The legend should be the guideline here. The right image has two antennas removed, e.g., from left to right on row 3: KP and OV flagged, MK and SC flagged, and NL and PT flagged. Again use the short legend. The PS files are also available from there.

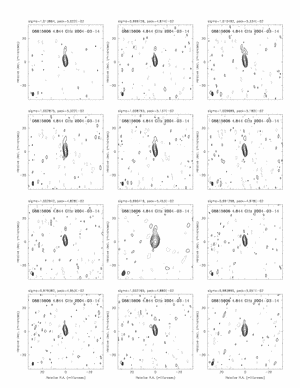

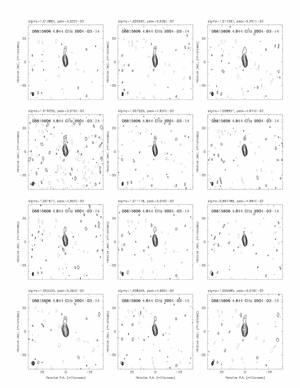

J08490+560308815606
<- flagged
none/BR/HN
0.5xT/FD/KP
LA/NL/PT
MK/OV/SC
PSfile
<- flagged
RMS (mJy/bm)
0.228/0.236/0.249
0.307/0.241/0.266
0.258/0.242/0.241
0.260/0.251/0.242
<- flagged		 flagged ->
none/BROV/HNNL
BRHN/FDHN/KPFD
KPOV/MKSC/NLPT
LAPT/NLOV/PTSC
PSfile
flagged ->
RMS (mJy/bm)
0.228/0.260/0.273
0.254/0.271/0.287
0.289/0.270/0.256
0.263/0.262/0.269
flagged ->

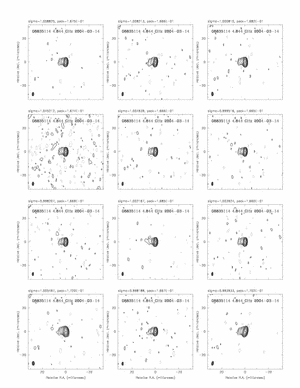

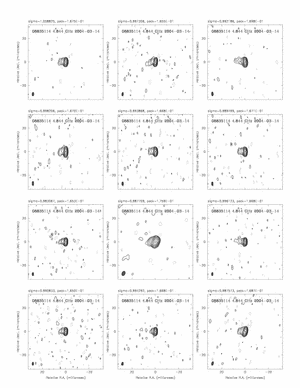

J08499+510808835114
<- flagged
none/BR/HN
0.5xT/FD/KP
LA/NL/PT
MK/OV/SC
PSfile
<- flagged
RMS (mJy/bm)
0.193/0.216/0.221
0.292/0.231/0.212
0.235/0.205/0.222
0.225/0.212/0.204
<- flagged		 flagged ->
none/BROV/HNNL
BRHN/FDHN/KPFD
KPOV/MKSC/NLPT
LAPT/NLOV/PTSC
PSfile
flagged ->
RMS (mJy/bm)
0.193/0.233/0.223
0.244/0.254/0.240
0.233/0.234/0.225
0.268/0.223/0.239
flagged ->

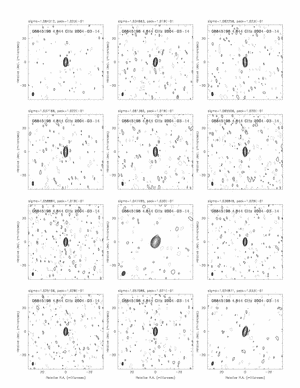

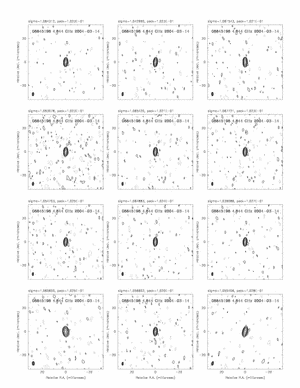

J08507+515908845198
<- flagged
none/BR/HN
0.5xT/FD/KP
LA/NL/PT
MK/OV/SC
PSfile
<- flagged
RMS (mJy/bm)
0.244/0.246/0.263
0.325/0.273/0.275
0.289/0.269/0.260
0.281/0.256/0.256
<- flagged		 flagged ->
none/BROV/HNNL
BRHN/FDHN/KPFD
KPOV/MKSC/NLPT
LAPT/NLOV/PTSC
PSfile
flagged ->
RMS (mJy/bm)
0.244/0.272/0.285
0.266/0.304/0.320
0.296/0.286/0.286
0.297/0.272/0.274
flagged ->

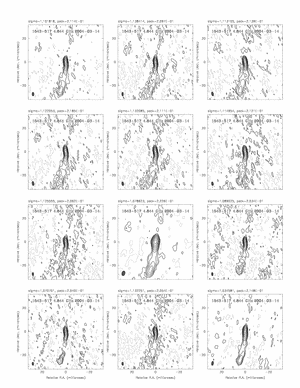

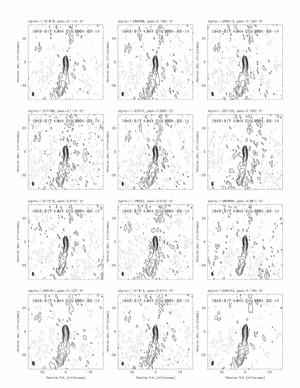

1543+5171543+517
<- flagged
none/BR/HN
0.5xT/FD/KP
LA/NL/PT
MK/OV/SC
PSfile
<- flagged
RMS (mJy/bm)
0.270/0.307/0.309
0.354/0.307/0.297
0.315/0.328/0.321
0.316/0.305/0.270
<- flagged		 flagged ->
none/BROV/HNNL
BRHN/FDHN/KPFD
KPOV/MKSC/NLPT
LAPT/NLOV/PTSC
PSfile
flagged ->
RMS (mJy/bm)
0.270/0.374/0.364
0.355/0.375/0.344
0.342/0.325/0.416
0.346/0.371/0.313
flagged ->

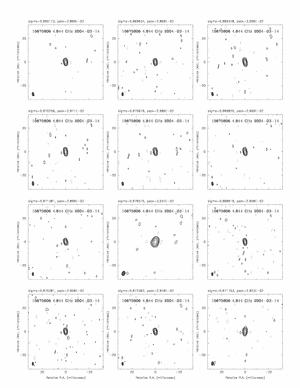

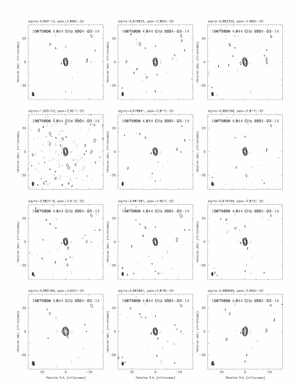

J15406+580315675806
<- flagged
none/BR/HN
0.5xT/FD/KP
LA/NL/PT
MK/OV/SC
PSfile
<- flagged
RMS (mJy/bm)
0.183/0.193/0.203
0.273/0.200/0.209
0.217/0.202/0.201
0.198/0.205/0.194
<- flagged		 flagged ->
none/BROV/HNNL
BRHN/FDHN/KPFD
KPOV/MKSC/NLPT
LAPT/NLOV/PTSC
PSfile
flagged ->
RMS (mJy/bm)
0.183/0.216/0.219
0.216/0.209/0.228
0.220/0.214/0.224
0.237/0.217/0.214
flagged ->

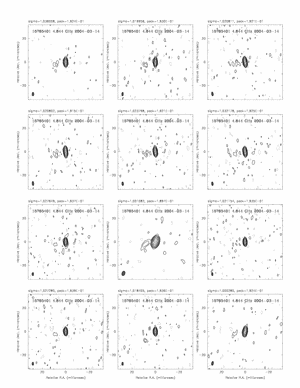

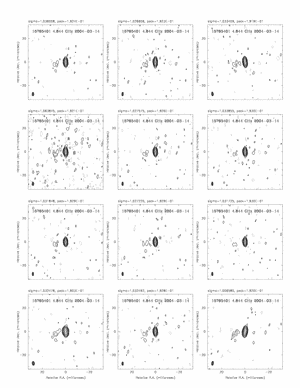

J15457+540015765401
<- flagged
none/BR/HN
0.5xT/FD/KP
LA/NL/PT
MK/OV/SC
PSfile
<- flagged
RMS (mJy/bm)
0.214/0.234/0.217
0.322/0.239/0.226
0.241/0.227/0.249
0.231/0.217/0.215
<- flagged		 flagged ->
none/BROV/HNNL
BRHN/FDHN/KPFD
KPOV/MKSC/NLPT
LAPT/NLOV/PTSC
PSfile
flagged ->
RMS (mJy/bm)
0.214/0.239/0.232
0.242/0.250/0.246
0.245/0.235/0.270
0.280/0.249/0.261
flagged ->
